EXTERNAL LIGHTNING PROTECTION - NIMBUS®

Capture system - Air terminal

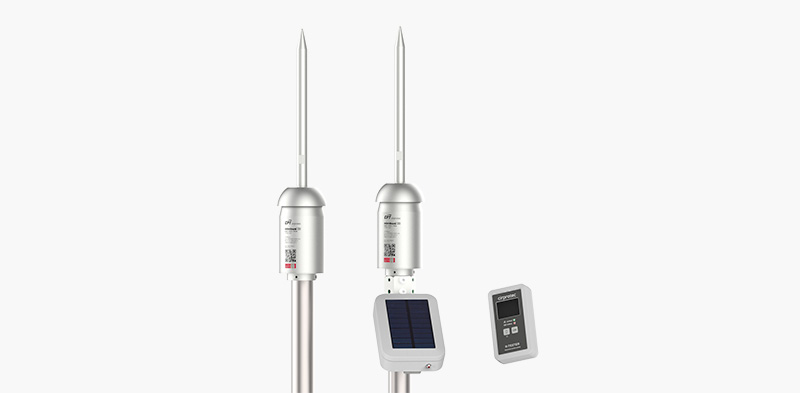

NIMBUS - Lightning rod with streaming device (ESE).

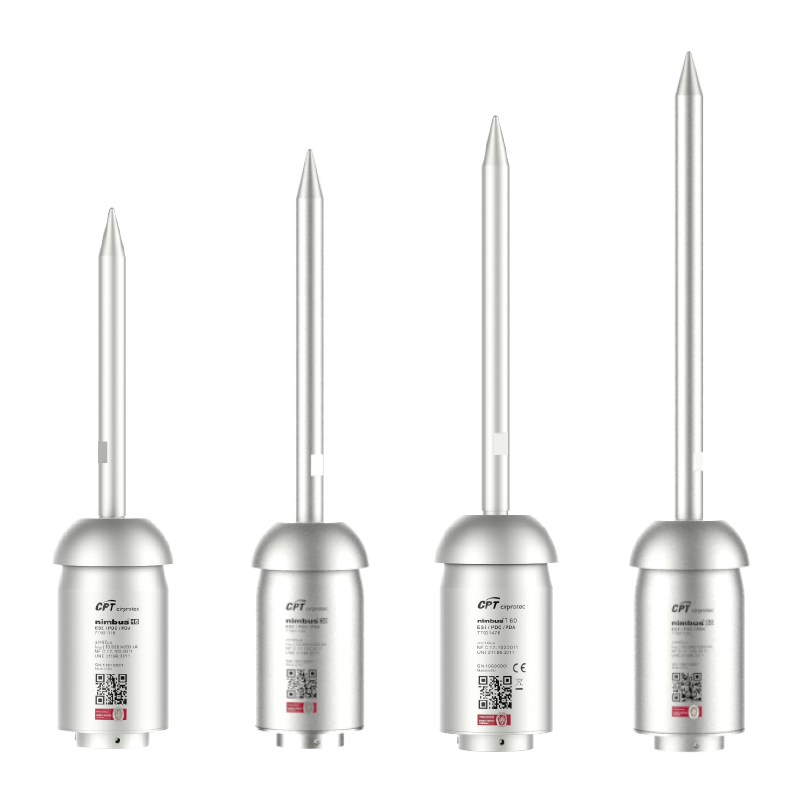

Nimbus® is the series of new generation lightning rods with electronic early streaming emission (ESE). Radius of protection up to 100 m (based on emission times of 15 μs, 30 μs, 45 μs and 60 μs).


Features

• Tested with lightning currents up to 200 kA (10/350 µs).
• Highest quality: AISI 316 stainless steel and non-expendable components.
• Tested and certified by independent laboratories.
• Extended 10 year warranty.
• Nimbus®, which protect more than 45,000 installations worldwide, a fact that bears witness to its performance, quality and warranty and our service.
• The nimbus® lightning rods exceed the requirements of the new version of standard NFC 17-102 v2011, with the goal of making them more robust, without sacrificing their compact size and with a significant weight reduction.

Active Lightning Protection System

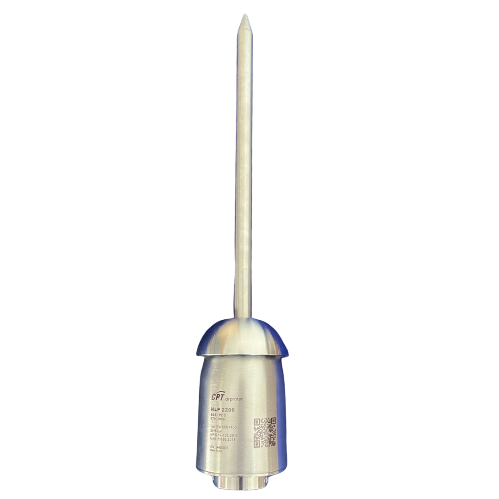

NLP 2200 – ESE LIGHTNING ROD

Superior quality ESE lightning rod according to NFC 17-102 for up to 120m protection radius. NLP 2200 tested quality at your service by Cirprotech


ESE Technology:

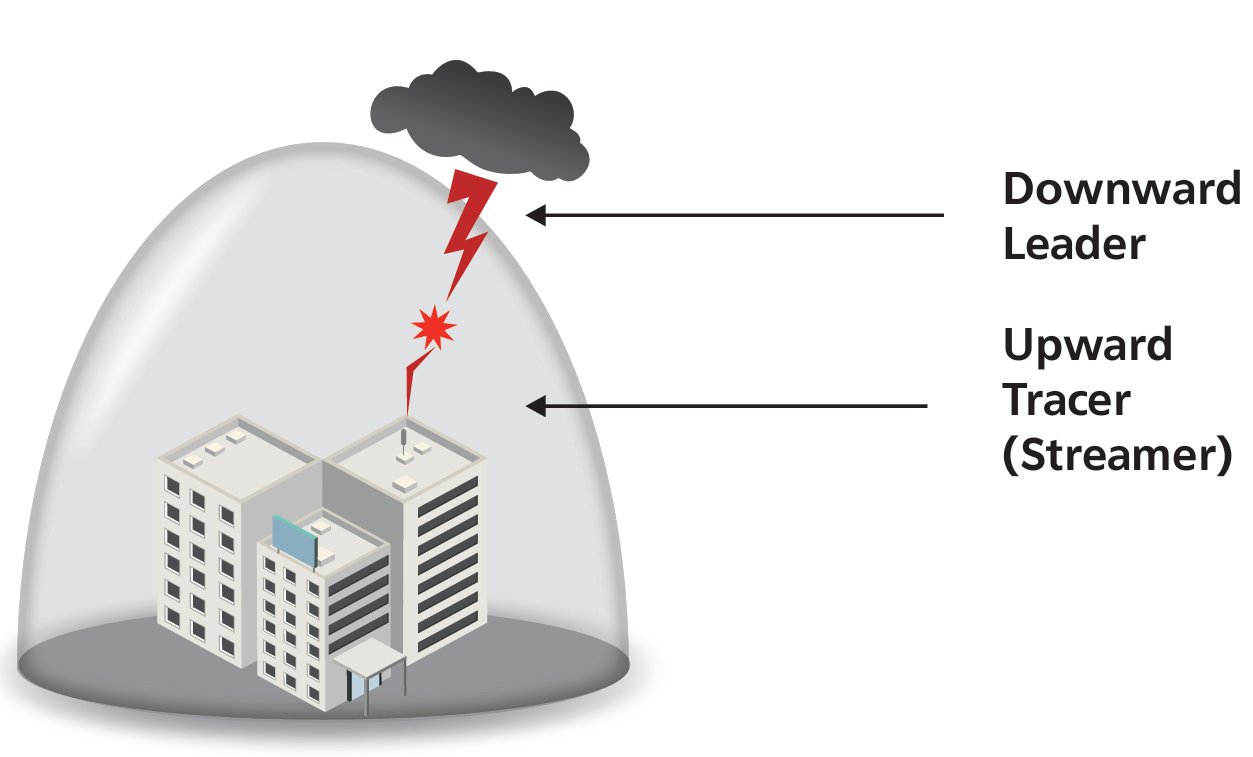

ESE-Early Streamer Emission technology uses the atmospheric gradient to generate ionization which can subsequently increase the protected volume. These facilities the protection of large area, simplifying and reducing material and installation costs.

• Savings of over 30% compared to conventional Lightning Protection System.
• Easy to install and maintain.


Why NLP 2200?

• The new 60 µs early streamer emission lightning rod designed by Cirprotech.
• Sequentially type-tested according to NFC 17-102 standards.

Protection Radius According to NFC 17-102:

PL→h(m)↓
2
5
10
20
30
40
50
60
Level 1 (D=20m) NLP 2200
31
79
79
80
79
77
74
69
Level 1 (D=30m) NLP 2200
35
86
88
89
90
89
88
85
Level 1 (D=45m) NLP 2200
39
97
99
102
104
105
105
104
Level 1 (D=60m) NLP 2200
43
107
109
113
116
118
120
120
PL→h(m)↓ Level 1 (D=20m) NLP 2200 Level 1 (D=30m) NLP 2200 Level 1 (D=45m) NLP 2200 Level 1 (D=60m) NLP 2200
2 31 35 39 43
5 79 86 97 107
10 79 88 99 109
20 80 89 102 113
30 79 90 104 116
40 77 89 105 118
50 74 88 105 120
60 69 85 104 120

Features

• IP67 Enclosure: Fully dust and waterproof.
• Designed and manufactured in Spain with highest quality controls.
• Stainless Steel (AISI 316 Grade): Superior quality and corrosion resistant.
• According to standards NFC 17-102, Product Complies with the newest ESE standards.

CDI Counter

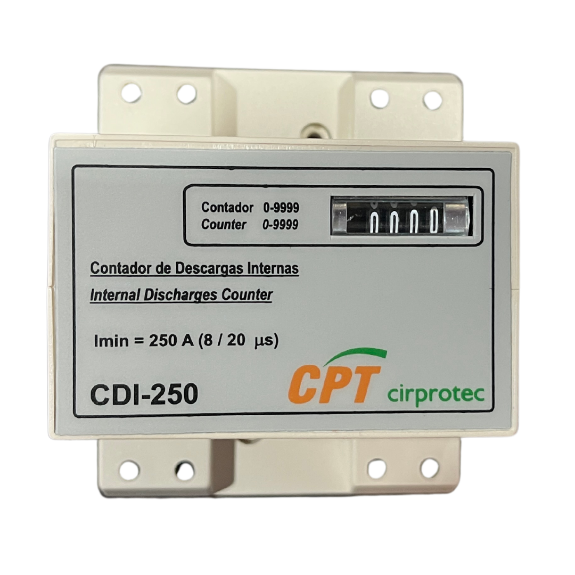

Surge counter model CDI-250 has no direct contact with elements of the lightning protection system. It allows monitoring of cumulative stress to the LPS and coordination of an effective maintenance and replacement programme cannot be reset.


INSTALLATION

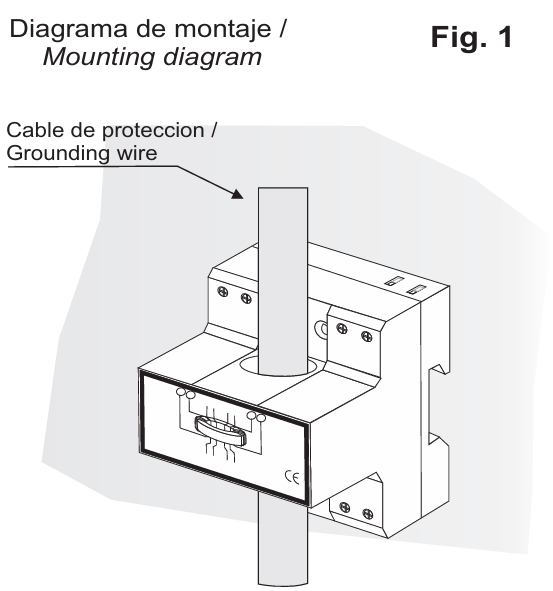

The counter is installed on the grounding system at a place where an impulse current of more than 250A is likely to occur, for example between the SPD and the bonding bar. The grounding wire is passed through the counter. The counter does not require a battery or power supply and is maintenance free. The CDI-250 can be installed on a DIN rail or attached directly to a flat surface using screws. The counter can accommodate grounding 2 wires of up to 100 mm.


Features

Technical Features - Model CDI - 250
Code 77 920 000
Minimum Current 250 A (8/20 µs)
Maximum Current 100 kA (10/350 µs)
Counter Range 0….9999
Maximum Connection Wire 100 mm²
IP Degree (IEC 60529) IP 20
Operating Temperature -40°C…+60°C
Dimensions 70 x 85 x 75 mm
Weight 152 g
